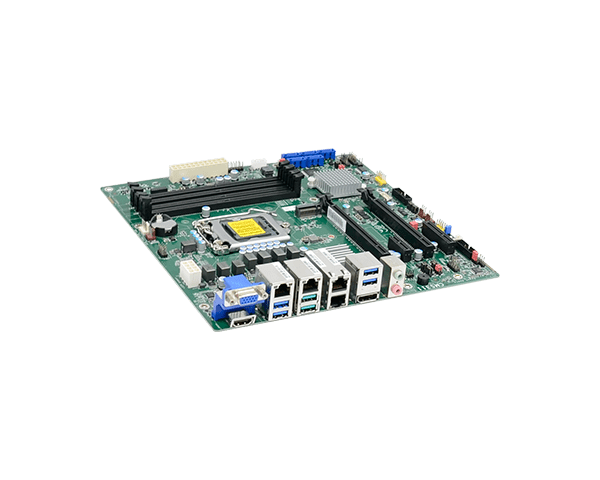

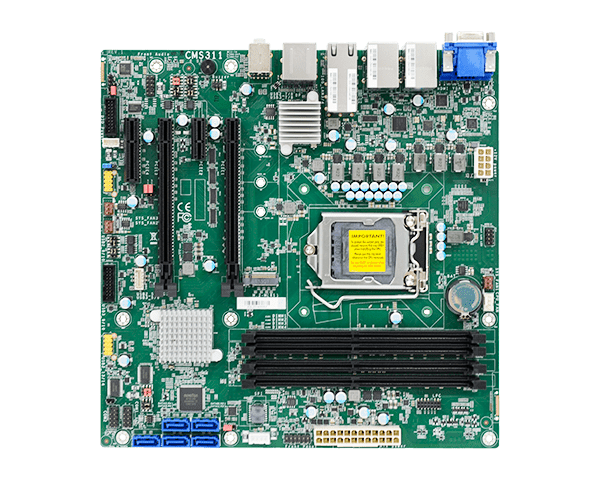

CMS311-W480E/Q470E

10th Gen Intel® LGA 1200 Socket Processors, TDP support up to 125W
Intel® Xeon® W-1290E (10 Cores, 20M Cache, up to 4.8 GHz; 95W (ECC support on W480E SKU only)
Intel® Xeon® W-1290TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W (ECC support on W480E SKU only)
Intel® Xeon® W-1270E (8 Cores, 16M Cache, up to 4.8 GHz); 80W (ECC support on W480E SKU only)
Intel® Xeon® W-1270TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W (ECC support on W480E SKU only)
Intel® Xeon® W-1250E (6 Cores, 12M Cache, up to 4.7 GHz); 80W (ECC support on W480E SKU only)
Intel® Xeon® W-1250TE (6 Cores, 12M Cache, up to 3.8 GHz); 35W (ECC support on W480E SKU only)
Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W
Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W
Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W
Intel® Core™ i3-10100E (4 Cores, 6M Cache, 3.8 GHz); 65W (ECC support on W480E SKU only)
Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 3.6 GHz); 35W (ECC support on W480E SKU only)
Intel® Pentium® G6400E (2 Cores, 4M Cache, 3.8 GHz); 58W (Not support on W480E SKU)
Intel® Celeron® G5900E (2 Cores, 2M Cache, 3.2 GHz); 58W (Not support on W480E SKU)
Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz); 35W (Not support on W480E SKU)

Intel® W480E/Q470E Chipset

Four 288-pin UDIMM up to 128GB
Dual Channel DDR4 2400/2666/2933 MHz (ECC support: W480E only)

AMI SPI 256Mbit

Intel® HD Gen 9 Graphics

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

1 x VGA, resolution up to 1920×1200 @ 60Hz
1 x DP++, resolution up to 4096×2160 @ 60Hz
1 x HDMI 1.4b, resolution up to 4096×2160 @ 24Hz

VGA + DP++ + HDMI

2 x PCIe x16 (Gen 3) (1 x16 signals or 2 x8 signals)
1 x PCIe x4 (Gen 3)
1 x PCIe x1 (Gen3)
1 x M.2 2242/2260/2280 M key (PCIe x4 NVMe with intel RST/Intel Optane Memory support)

Realtek ALC888

1 x Intel® i219LM PCIe (10/100/1000Mbps) (only Xeon, Core i9/i7/i5 support iAMT)
1 x Intel® i211AT PCIe (10/100/1000Mbps), Co-lay i210AT
1 x Intel® x550-AT2 (2 x 10GbE)

2 x GbE (RJ-45)
2 x 10GbE (RJ-45)

2 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1

1 x VGA
1 x DP++
1 x HDMI 1.4b

1 x Line-out
1 x Mic-in
1 x Line-in (opt. by request, MOQ required)

2 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)

2 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
4 x USB 2.0 (2.54mm pitch) (colay vertical Type A, MOQ required)

1 x Front Audio Header
1 x S/PDIF

5 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10

1 x 16-bit DIO

1 x LPC

1 x SMBus

System Reset, Programmable via Software from 1 to 255 Seconds

Infineon TPM2.0 (opt., MOQ required)

ATX

8-pin ATX 12V power
24-pin ATX power

TBD

CR2032 Coin Cell

Windows 10 IoT Enterprise 64-bit

Linux

Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery

Operating: 5 to 95% RH
Storage: 5 to 95% RH

TBD

microATX Form Factor
244mm (9.6″) x 244mm (9.6″)

PCB: 1.6mm
Top Side: TBD, Bottom Side: TBD

CE, FCC Class B, RoHS

1 CMS311-W480E/Q470E motherboard
1 COM port cable (Length: 300mm, 2 x COM ports) A81-015026-023G
1 Serial ATA data cable (Length: 500mm) 332-553001-005G
1 I/O shield TBD

Taiwan
