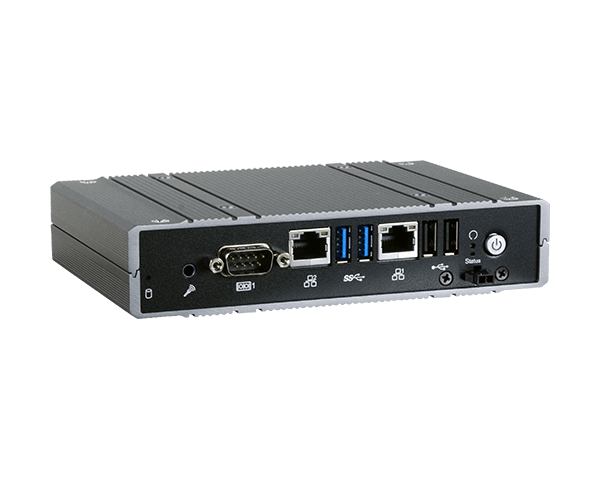

DFI

EC800-AL

Fanless Embedded System, Intel Atom E3900, DDR4

product-cs

Heb jij een vraag over dit product?

Intel Atom® Processor E3900
2GB/4GB/8GB LPDDR4-2400 memory onboard
Triple independent displays: 1 VGA/DVI-D + 2 Mini-DP/Micro-HDMI
Supports 1 Mini PCIe and 2 M.2 slots
Rich I/O ports: 2 Intel GbE, 2 COM, 4 USB
15-Year CPU Life Cycle Support Until Q4′ 31 (Based on Intel IOTG Roadmap)

System
Processor
Intel Atom® Processor E3900 Series, BGA 1296
Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9W
Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6W
Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
Memory
2GB/4GB/8GB Memory Down
Dual Channel LPDDR4 2400MHz
BIOS
Insyde SPI 128Mbit (supports UEFI boot only)
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4, MVC, VP9, WMV9, JPEG/MJPEG
HW Encode: H.264, MPEG4, VP8, H.265, MVC
Display
1 x VGA/DVI-D
2 x Mini-DP/Micro-HDMI
VGA: resolution up to 1920×1200 @ 60Hz
DVI-D: resolution up to 1920×1200 @ 60Hz
Mini-DP: resolution up to 4096×2160 @ 60Hz
Micro-HDMI: resolution up to 3840×2160 @ 30Hz
Triple Displays
VGA + 2 Micro-HDMI
DVI-D + 2 Mini-DP
Expansion
Interface
1 x Full-size Mini PCIe (PCIe/USB/SATA)
1 x M.2 (2242 B Key) (PCIe/USB/SATA)
1 x M.2 (2230 AE Key) (PCIe/USB)
Audio
Audio Codec
Realtek ALC262
Ethernet
Controller
2 x Intel® I210AT PCIe (10/100/1000Mbps)
LED
Indicators
1 x Power LED
1 x HDD LED
Front I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (DB-9)
USB
2 x USB 3.0 (type A)
2 x USB 2.0 (type A)
Audio
1 x Mic-in
Buttons
1 x Power Button
Switch
1 x Power Switch (2-pin)
Rear I/O
Serial
1x DB9 RS-232/422/485 (default), or change to 8-bit DIO by jumper select
Display
1 x VGA/DVI-D
2 x Mini-DP/Micro-HDMI
Audio
1 x Line-out
Wi-Fi Antenna
2 x Wi-Fi Module Antenna Hole
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
Wide Range 9~36V
Connector
DC Jack
OS Support
OS Support (UEFI Only)
Windows 10 IoT (64-bit)
Linux
Linux Yocto Project (64-bit)
Environment
Operating Temperature
N4200: -20 to 60°C (standard)
E3940, E3930: -20 to 60°C (standard), -40 to 70°C (wide-temp)
With 0.4m/s Air Flow
Storage Temperature
-40 to 85°C
Relative Humidity
10 to 90% RH (non-condensing)
Mechanism
Construction
Aluminum
Mounting
Wall/VESA/DIN Rail Mount (available upon request)
Dimensions (W x H x D)
161mm x 35.1mm x 108.2mm
Weight
700g
Standards and Certifications
Shock
Operating: 3G, 11ms
Non-Operating: 5G, 11ms
Vibration
Operating: Random 5~500Hz, IEC68-2-64 (3G)
Non-Operating: Sine 10~500Hz, IEC68-2-6 (3G)
Certifications
CE, FCC Class B, UL, RoHS
Packing List
Packing List
1 EC800-AL system unit
Mounting screws for Mini PCIe module
Mounting screws for M.2 module (8mm & 4mm), washer between 2 M.2 modules
1 Quick Installation Guide
Country of Origin
Country of Origin
Taiwan
